What is a power system

The power system is a complex and extensive engineering network that involves various stages from power generation to end-user consumption. Its primary function is to convert energy from natural sources into electricity and deliver it through a series of devices and networks to various end users. The structure of a power system can be divided into five main components: generation, transmission, transformation, distribution, and consumption. These components are interconnected and operate in a coordinated manner, forming an interdependent and cohesive system.

1. Generation

Generation is the starting point of the power system. Power plants convert various energy sources, such as coal, natural gas, oil, hydropower, nuclear energy, wind energy, and solar energy, into electricity. There are various types of power plants, with thermal power plants being the most common. These plants burn fossil fuels (like coal and natural gas) to heat water, producing steam that drives turbines, which in turn rotate generators to produce electricity. Hydropower plants utilize the potential energy of water, converting the kinetic energy of flowing water into mechanical energy through turbines, which is then converted into electricity. Nuclear power plants generate electricity through nuclear fission reactions that release immense energy. In recent years, renewable energy sources such as wind and solar power have become increasingly prominent. These renewable power plants directly generate electricity from wind and solar radiation, offering environmentally friendly and sustainable energy solutions.

2. Transmission

Transmission refers to the process of transporting electricity generated at power plants through high-voltage transmission lines to load centers or substations located far from the generation site. To minimize energy losses during transmission, electricity is typically transmitted at high or ultra-high voltages. The transmission network consists of a series of transmission lines, switching equipment, and other related facilities. These components not only ensure the efficient delivery of electricity but also rapidly isolate problems in case of system failures to prevent broader outages. As transmission distances increase, high-voltage transmission becomes particularly important because higher voltages result in lower currents and, consequently, reduced transmission losses.

3. Transformation

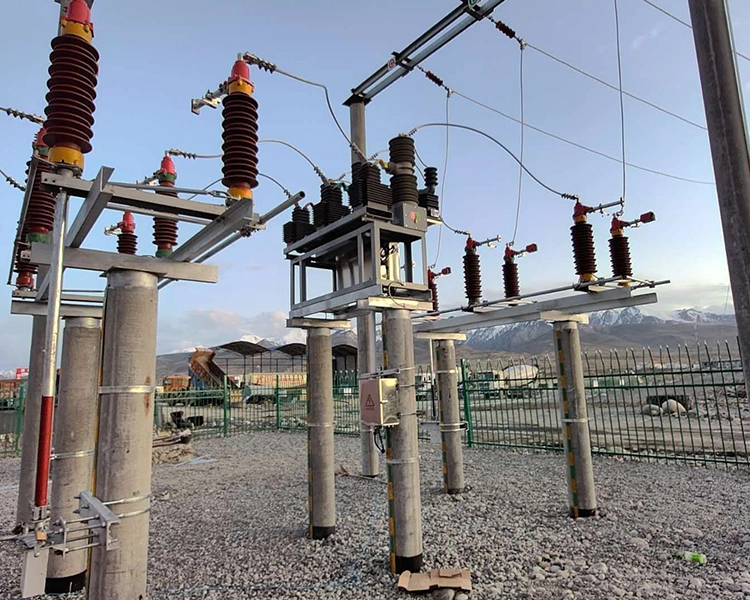

Transformation is an essential part of the power system, primarily functioning through substations to step up or step down the voltage of electricity. Electricity generated by power plants typically has a lower voltage, which needs to be stepped up before leaving the power plant for long-distance transmission. Before the electricity reaches load centers or end users, the voltage usually needs to be stepped down again to meet the requirements of the distribution network and the end users. Substations are the core equipment in this process. They use transformers to convert the voltage from one level to another and rely on a series of switches, circuit breakers, and control devices to ensure the safe transmission and distribution of electricity.

4. Distribution

The distribution network is the bridge between substations and end users in the power system. The primary task of the distribution network is to further distribute the electricity, stepped down by substations, to various consumers. The distribution network typically consists of a medium-voltage distribution network and a low-voltage distribution network. The medium-voltage distribution network is responsible for transmitting electricity to various distribution transformers, while the low-voltage distribution network distributes electricity from the distribution transformers to residential, commercial, and industrial users. The design and operation of the distribution network require a high degree of reliability and flexibility to adapt to the load demands of different users and quickly restore power in the event of a fault.

5. Consumption

Consumption is the final stage of the power system and represents the end-use of electricity. Various users convert electricity into other forms of energy, such as mechanical energy, thermal energy, and light energy, through electrical devices. Industrial users typically require large amounts of electricity to power heavy machinery, production lines, and other industrial facilities. Commercial users use electricity for lighting, heating, air conditioning, and other office and commercial activities. Residential users mainly use electricity for lighting, household appliances, and heating. Changes in electricity demand directly affect the stability of the power system, so utility companies need to adjust the system in real time based on demand changes to ensure a balance between supply and demand.

As one of the fundamental infrastructures of modern society, the power system must ensure a stable and reliable supply of electricity. To achieve this goal, the design and operation of power systems must consider various factors, including the efficiency of electricity production, transmission, and distribution, the safety and stability of the system, environmental protection, and economic efficiency. Through scientific planning and technological advancements, power systems are continuously optimized and upgraded, providing robust energy support for the development of human society.
