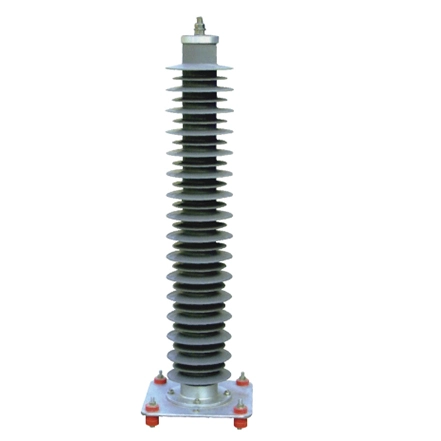

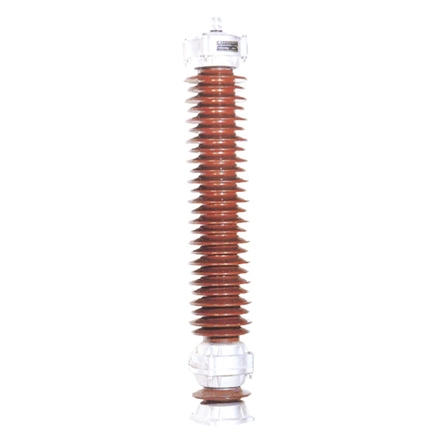

For 110kV surge arrester, the series structure of composite insulators and arresters is adopted, which integrates the lightning protection functions of insulator support and arrester, and has the functions of preventing icing and pollution flashover of transmission lines.
Nominal System Voltage | 110kV |
Application Place | Medium-voltage system; For power station, transmission and distribution line |
Maximum System Voltage | 126 |
Rated Voltage (KV) | 108 |
Nominal Discharge Current (kA) | 10 |
Line Discharge Class | 3 |
Energy Absorption Capacity KJ/KV at Ur | 7.3 |
2ms Long Duration current impulse (A) | 800 |
Short Circuit Current Rating (kA) | 50 |
Material of Housing | silicone rubber |
Structure Design | Fibreglass filament Mesh winding core, and then injection silicon rubber directly |
Pressure release device | with |
The 150kA flow capacity design is adopted to meet the operation requirements of the 110kV line in the thunderstorm area and the cancellation of the ground wire.
It can directly replace ordinary line insulators and line arresters. It is easy to install and does not require special grounding treatment. It only needs to meet the natural grounding requirements of towers.
