FQX-25 25kV Railway Insulators

The product is specially used it can effectively prevent flashover due to pollution, and lessen the job of cleaning, which is t he necessary device that other porcelain type or glass type insulators can never replace.

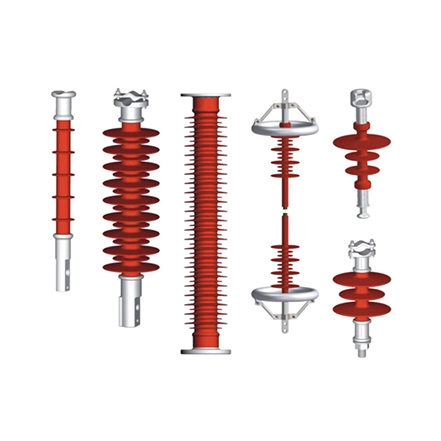

third rail insulators

Specifications of FQX-25 25kV Railway Composite Insulators

Type

FQX-25

Rated Voltage (KV)25
Rated mechanical load (KN)60
Structural height (mmm±10)650±5
Composite distance (mm)580
Min. nominal creepage distance (mm)1400
Lightning impulse voltage (peak value) (kV)270
1min power frequency wet withstand voltage (kV)130


Please Contact YF Power!
