ZW8-12/ Series Outdoor HV Vacuum Automatic Circuit Reclosers, are used for switching on/off load current, overload current and short circuit current in three-phase power systems with AC 50Hz and rated voltage 10~12kV. Matching with recloser controllers, the breaker can identify current characteristics and realize repetitious auto-closing or permanent fault isolation. With its own PT power.
Item | Unit | Parameters | ||
Rated voltage | KV | 12 | ||
Rated insulation level | Power frequency withstand voltage | Dry | 42 | |
Wet | 34 | |||
Lightning impulse withstand voltage (Peak value) | 75 | |||
Rated current | A | 630;400;200 | ||
Rated short circuit-breaking current | KA | 20;16;12.5 | ||
Rated operating sequence | O-0.3s-CO-180s-CO | |||
Breaking current frequency underrated short circuit | Times | 30 | ||
Rated short current switching current (Peak value) | KA | 50 | ||
Rated peak value withstands current | KA | |||
Rated short-time withstand current | KA | 20;16;12.5 | ||
Rated short circuit duration time | S | 4 |
The ZW8-12/C outdoor HV vacuum breaker has all functions of the basic mode breaker. Matching with the reclosing controller, it becomes a recloser intelligence breaker. The basic mode breaker can match with a reclosing controller and PT reclosing controller, having three segment compound protection of switch on rush current control, over current protection and short quick break. And it has 1~3 times reclosing, low current ground protection, and wired supervisory control functions. It can also remote control under the pole, and regulate the parameters of the breaker.

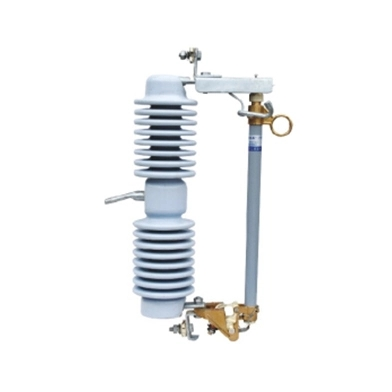

Find Quality Surge Arrester, RTV Antifouling Coatings,Compression Moulding Machine, MOV Blocks, Composite Insulator, Silicone Rubber for Electric, Drop Out Fuse Cutout Switch, Distributed Fault Location System For Overhead Lines from YF Power.
