FPQ1W-10/4T20 10kV Pin Insulators

The technical requirements for the insulator crimping machine mainly include crimping force, equipment precision, control principle, etc. Among them, the crimping force is required to be ≥500T, and the equipment precision is ≤0.05mm. Dual control of pressure and compression is adopted, and the crimping program can be set for flexible Crimp. At present, foreign crimping machines from Germany and Finland all meet the requirements. The equipment has high precision, high pressure, convenient control, and beautiful appearance. However, foreign equipment is expensive and has a long delivery period, and the after-sales technical support is not strong enough.

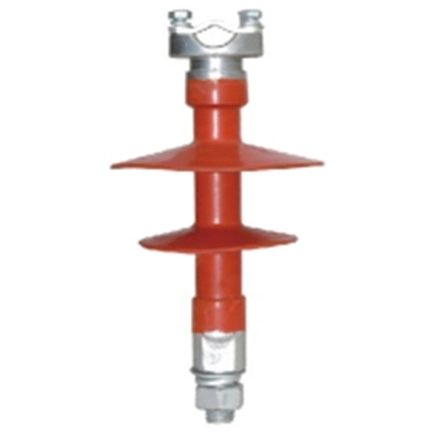

types of pin insulator
pin insulators
types of pin insulator
pin insulators

Specifications of FPQ-2/2T12 2kV Composite Pin Insulators

TypeFPQ1W-10/4T20
Rated bent withstand load (kN)4
Height (mm)195
Max. diameter of insulated parts (mm)146
Min. Creepage distance (mm)127
Min. Nominal creepage distance (mm)300
Downward bolt thread diameter (mm)20
Rated voltage (kV)10
The highest voltage of equipment (kV)12
1min power frequency wet withstand voltage not less than (kV)40
Full wave lightning impulse withstand voltage(peak value) not less than (kV)90
