Drop Out Fuse HPRWG1-12F

A drop out fuse uses a metal conductor as a melt in series in the circuit. When an overload or short-circuit current passes through the melt, it will fuse due to its own heating, thereby breaking the circuit. Fuses are simple in structure and easy to use, and are widely used as protection devices in power systems, various electrical equipment and household appliances.

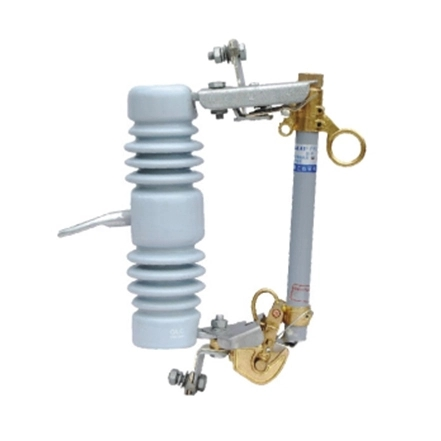

drop out fuse element

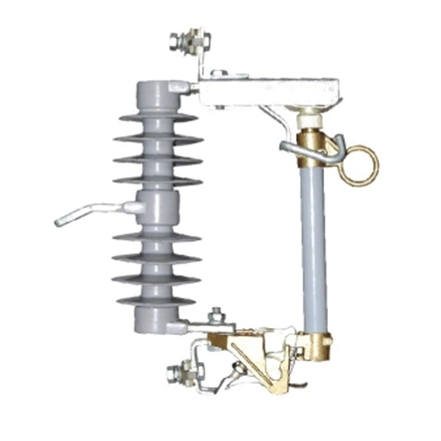

drop out fuse set

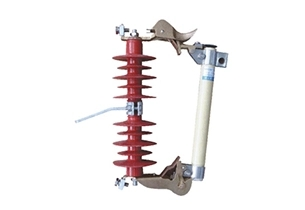

drop out fuse switch

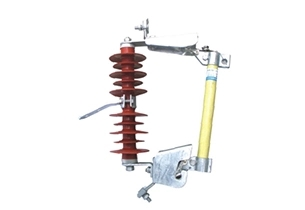

drop out fuse element
drop out fuse set
drop out fuse switch

Specifications of Drop Out Fuse HPRWG1-12F

TypeHPRWG1-12FHPRWG1-12F
Rated Voltage (kV)1212
Rated Current (A)100200
Breaking Current (A)630012500
Impulse Voltage (BIL)125125
Power frequency withstand Voltage (kV)4545
Leakage distance (mm)380380
Weight (kg)55.5
Dimensions (cm)                 57*37*43


Please Contact YF Power!
