FS3-35/5 35kV Cross Arm Insulators

The products are suitable for the innovation of urban electrical networks where the streets are narrow. It can effectively reduce the necessary height of the pole/tower, due to high bent resistant capacity, there will avoid the case that porcelain n cross-arm happen to crack. More, it can be healthy pollution resistant.

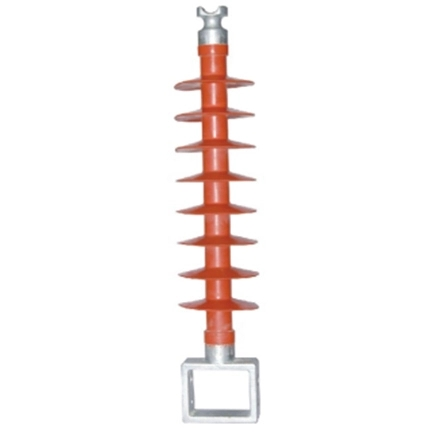

cross arm insulators

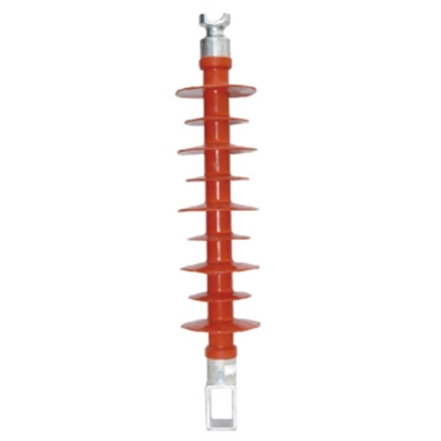

horizontal line post insulator
cross arm insulators
horizontal line post insulator

Specification of FS3-35/5 35kV Cross Arm Insulators

TypeFS3-35/5
Central distance between wire channel and installation axis (mm)620
Min. creepage distance (mm)490
Min. nominal creepage distance (mm)1060
Installation diameter (mm)22
Rated bent withstand load (kN)5
1min power frequency wet withstand voltage (kV)100
Full wave lightning impulse voltage (peak value) (kV)265



Please Contact YF Power!
