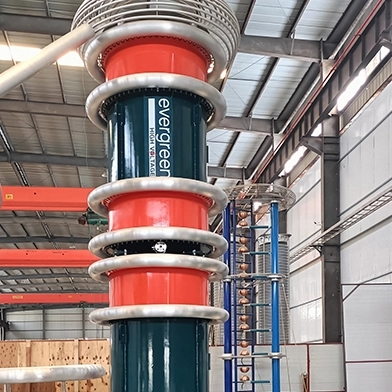

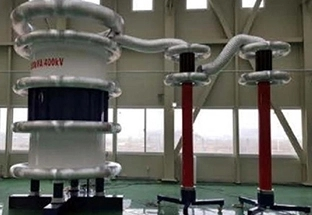

Impulse Voltage Test System

It can be used to generate full & chopped lightning impulse waves and switch lightning waves,  and mainly be applied for the type and research test of kinds of power equipment, just like power transformers, GIS, instrument transformers, power cables, and etc., and widely be used by the power equipment manufacturer, test lab and research center. Product design conforms to the IEC standard.

varistor zno

Main Components of Impulse Voltage Test System

  • Impulse voltage generator

  • DC charging equipment

  • Impulse voltage divider with weak-Damped resistance

  • Multiple chopping gap

  • Digital control and measuring system


System Model Sheet of Impulse Voltage Test System

MODEL

IMPULSE ENERGY

RATING VOLTAGE

STAGE VOLTAGE

CAPACITANCE

SLCJV-15/300

15kj

300kV

100kV

1uF

SLCJV-40/400

40kj

400kV

100kV

2uF

SLCJV-30/600

30kj

600kV

100kV

1uF

SLCJV-90/900

90kj

900kV

150kV

1.34uF

SLCJV-120/1200

120kj

1200kV

150kV

1.34uF

SLCJV-180/1800

180kj

1800kV

200kV

1uF

SLCJV-120/2400

120kj

2400kV

200kV

0.5uF

SLCJV-240/2400

240kj

2400kV

200kV

1uF

( Note: Upper is just for reference, additional models can be customized according to customer.)
